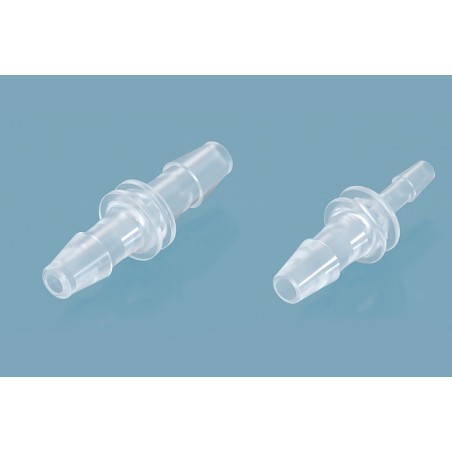

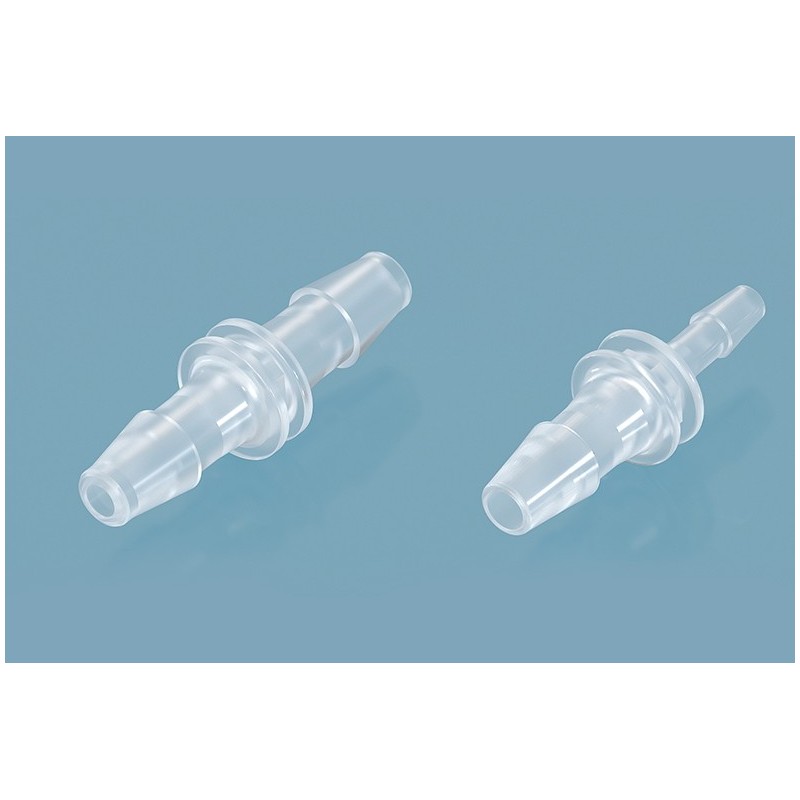

Barbed Bulkhead Union for pipe with anti-slip feature, from Ø1.82 to Ø12.7
Available measures
DI-016 - B=Ø1.6 - A=Ø.99 - C=Ø2.8 - D=2.0 - F=Ø7 - E=18
DI-024 - B=Ø2.4 - A=Ø1.58 - C=Ø3.4 - D=2.0 - F=Ø7 - E=20
DI-032 - B=Ø3.2 - A=Ø1.97 - C=Ø4.2 - D=2.0 - F=Ø7 - E=20
DI-040 - B=Ø4.0 - А=Ø2.46 - С=Ø6.0 - D=2.5 - F=Ø10 - E=33.2
DI-048 - B=Ø4.8 - А=Ø3.45 - С=Ø6.8 - D=2.5 - F=Ø10 - E=33.2
DI-064 - B=Ø6.4 - A=Ø4.93 - C=Ø8.4 - D=3.0 - F=Ø14 - E=40
DI-087 - B=Ø8.7 - A=Ø6.40 - C=Ø10.7 - D=3.0 - F=Ø14 - E=40
DI-095 - B=Ø9.5 - A=Ø7.00 - C=Ø11.6 - D=1.6 - F=Ø13.2 - E=45.4
DI-127 - B=Ø12.7 - A=Ø9.50 - C=Ø14.5 - D=1.6 - F=Ø15.9 - E=54.4
Barbed Bulkhead Union —two piece set
Application Note
◆ Plug-in hose connector that goes through the housing of the unit to
connect the internal hose to the outside; anti-rotation holes prevent the
connector from rotation .Easy and convenient to use.
◆ PP material, non-toxic, odourless, heat resistant, resistant to chemical
corrosion and various organic substances
◆ Radiation sterilisation available
◆ REACH、ROHS Certified,Biocompatibility and FDA report available.
