Barbed Bulkhead Union for pipe with anti-slip feature, from Ø1.6 to Ø8.7

Available measures

DC-016-1/4-28-016P - B=Ø1.6 - A=Ø0.99 - C=Ø2.8 - E=Ø12 - D=7.6 - F=27.7
DC-024-1/4-28-024P - B=Ø2.4 - A=Ø1.58 - C=Ø3.4 - E=Ø12 - D=7.7 - F=27.7
DC-032-1/4-28-032P - B=Ø3.2 - A=Ø2.46 - C=Ø4.2 - E=Ø12 - D=7.7 - F=29.7
DC-040-M8-040P - B=Ø4.0 - A=Ø2.46 - C=Ø6.0 - E=Ø18 - D=8.0 - F=36.51
DC-048-M8-048P - B=Ø4.8 - A=Ø3.94 - C=Ø6.8 - E=Ø18 - D=8.0 - F=37.3
DC-064-M10-064P - B=Ø6.4 - A=Ø5.42 - C=Ø8.4 - E=Ø18 - D=8.0 - F=48.7
DC-087-M12-087P - B=Ø8.7 - A=Ø7.39 - C=Ø10.7 - E=Ø18 - D=8.0 - F=49.7

Thread Barbed Bulkhead Union : DC-016-1/4-28-016P

Description
Product Details

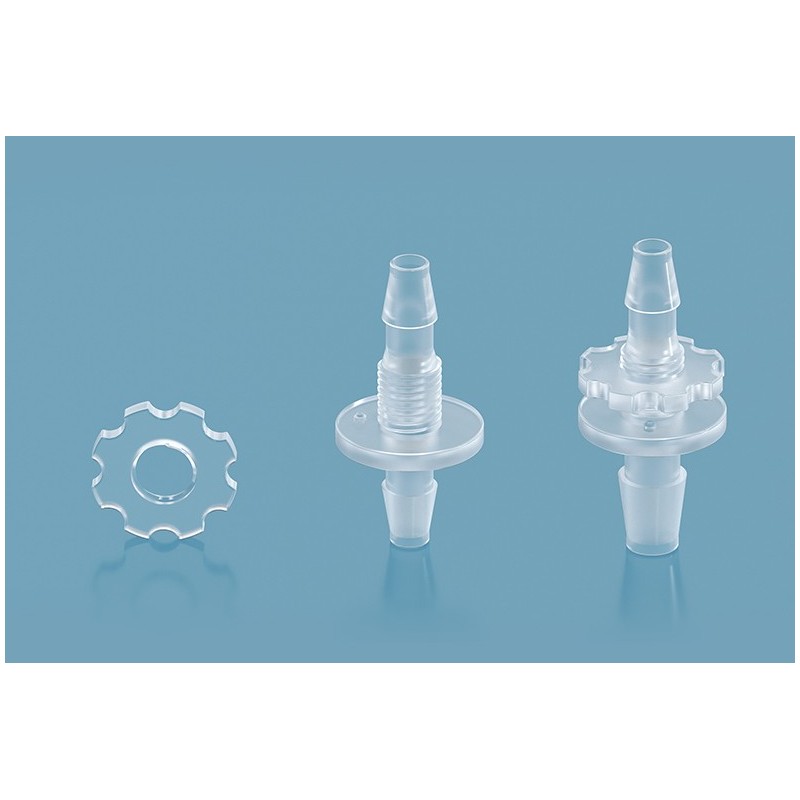

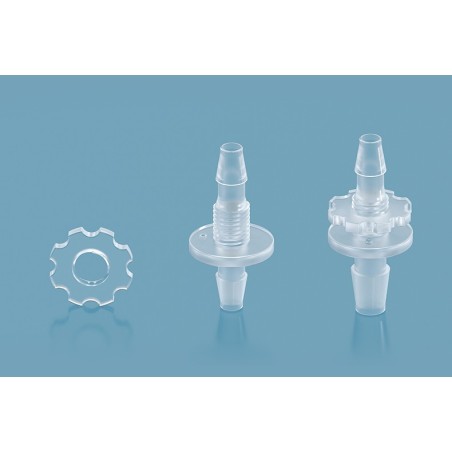

Barbed Bulkhead Union —two piece set
◆ Plug-in hose connector that goes through the housing of the unit to
connect the internal hose to the outside; anti-rotation holes prevent the
connector from rotation .Easy and convenient to use.
◆ PP material, non-toxic, odourless, heat resistant, resistant to chemical
corrosion and various organic substances
◆ Radiation sterilisation available
◆ REACH、ROHS Certified,Biocompatibility and FDA report available.

Application Note
Step 1. Drill the hole for connector and mounting
in the panel as required,
the location and size of the holes are as shown in
the diagram below.
Step 2. Insert connector on one end of the panel,
the mounting holes under
the connector Barb1 port correspond to the
position of the mounting holes on
the panel.
Step 3.The other end is screwed into the match
ing single thread flower
nut and tightened. The fitting is completed.
Step 4.Cut the hose as required with the special
hose cutter
Step 5. Insert the barbed head at both ends of
the fitting into the hose.pressure) the ferrules
should be replaced
